JFC0603-1300FS

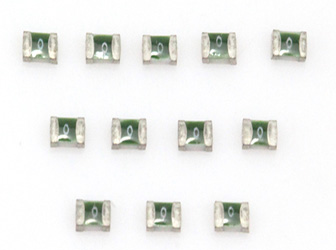

集電通JFC0603-1300FS 保險絲具有體積小、容易焊接、特快熔斷、產品額定電流范圍廣、工作溫度范圍廣泛等的特點，主要應用于手機，數碼相機，DVD播放器，硬盤驅動器等。
| Part NO. | Rated VoltageDC | Rated Current(A) | Breaking Capacity1 | Typical Cold. Resistance(mOhms)2 | Typical Voltage Drop(mV) | Typical Pre-Arcing I2t (A2Sec)3 | Aplha Marking | Data Sheet |
|---|---|---|---|---|---|---|---|---|
| JFC0603-1800FS | 32V | 8 | 50A | 5.1 | 75 | 3.0 | Z |
 |
| JFC0603-1700FS | 32V | 7 | 50A | 7.3 | 80 | 2.3 | X |
|
| JFC0603-1600FS | 32V | 6 | 50A | 8.5 | 110 | 1.7 | V |
|
| JFC0603-1500FS | 32V | 5 | 50A | 14 | 110 | 1.2 | T |
|
| JFC0603-1400FS | 32V | 4 | 50A | 21 | 120 | 0.56 | S |
|
| JFC0603-1350FS | 32V | 3.5 | 50A | 23.8 | 130 | 0.50 | R |
|
| JFC0603-1300FS | 32V | 3 | 50A | 35 | 130 | 0.21 | O |
|
| JFC0603-1250FS | 32V | 2.5 | 50A | 52 | 145 | 0.14 | L |
|
| JFC0603-1200FS | 32V | 2 | 50A | 72 | 160 | 0.115 | K |
|
| JFC0603-1150FS | 32V | 1.5 | 50A | 150 | 270 | 0.045 | H |
|
| JFC0603-1125FS | 32V | 1.25 | 50A | 204 | 315 | 0.013 | J |
|
| JFC0603-1100FS | 32V | 1 | 50A | 300 | 345 | 0.011 | B |
|
| JFC0603-0750FS | 32V | 0.750 | 50A | 470 | 427 | 0.0090 | G |
|
| JFC0603-0500FS | 32V | 0.500 | 50A | 1070 | 582 | 0.0010 | F |
|
| JFC0603-0375FS | 32V | 0.375 | 50A | 1310 | 587 | 0.00093 | E |
|
| JFC0603-0250FS | 32V | 0.250 | 50A | 3250 | 893 | 0.00042 | D |
|
