: 0451.250MRL

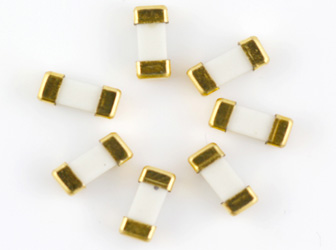

Littelfuse力特0451.250MRLNano2 SMF保險絲是一款超小型、方形表面貼裝的保險絲，也可連同表面貼裝保險絲座供貨。功能與特色: 特快熔斷尺寸小巧產品額定電流范圍廣（62mA至15A）工作溫度范圍廣泛低溫降額符合RoHS標準 無鹵素。

型號	Ampere Rating (A)	Amp Code	Max Voltage Rating(V)	Interrupting Rating	Nominal Code Resistance (Ohms)	Nominal Melting I2t(A2sec)
0451.125MRL	0.125	.125	125	50 amperes @125VAC/VDC	1.7000	0.00286
0451010.MRL	10.0	010.	125	35 amperes @125 VAC/ 50 amperes @125 VDC 300	0.0056	26.46
0451015.MRL	15.0	015.	65	50 amperes @65 VAC/VDC	0.0037	97.82
0451012.MRL	12.0	012.	65	50 amperes @65 VAC/VDC	0.0049	47.97
0451008.MRL	8.00	008.	125	50 amperes @125VAC/VDC	0.0077	20.23
0451007.MRL	7.00	007.	125	50 amperes @125VAC/VDC	0.0090	10.32
045106.3MRL	6.30	06.3	125	50 amperes @125VAC/VDC	0.0096	9.170
0451005.MRL	5.00	005.	125	50 amperes @125VAC/VDC	0.0125	5.566
0451004.MRL	4.00	004.	125	50 amperes @125VAC/VDC	0.0160	3.152
045102.5MRL	2.50	02.5	125	50 amperes @125VAC/VDC	0.0286	1.029
045103.5MRL	3.50	03.5	125	50 amperes @125VAC/VDC	0.0200	2.469
045103.15MRL	3.15	3.15	125	50 amperes @125VAC/VDC	0.0215	1.920
0451003.MRL	3.00	003.	125	50 amperes @125VAC/VDC	0.0227	1.650
0451002.MRL	2.00	002.	125	50 amperes @125VAC/VDC	0.0367	0.530
045101.6MRL	1.60	01.6	125	50 amperes @125VAC/VDC	0.0580	1.060
045101.5MRL	1.50	01.5	125	50 amperes @125VAC/VDC	0.0630	0.853
045101.25MRL	1.25	1.25	125	50 amperes @125VAC/VDC	0.0780	0.664
0451001.MRL	1.00	001.	125	50 amperes @125VAC/VDC	0.1530	0.459
0451.800MRL	0.800	.800	125	50 amperes @125VAC/VDC	0.2120	0.271
0451.750MRL	0.750	.750	125	50 amperes @125VAC/VDC	0.2450	0.185
0451.630MRL	0.630	.630	125	50 amperes @125VAC/VDC	0.3050	0.143
0451.500MRL	0.500	.500	125	50 amperes @125VAC/VDC	0.4200	0.0795
0451.400MRL	0.400	.400	125	50 amperes @125VAC/VDC	0.5600	0.0484
0451.375MRL	0.375	.375	125	50 amperes @125VAC/VDC	0.6100	0.0425
0451.250MRL	0.250	.250	125	50 amperes @125VAC/VDC	0.5765	0.0158
0451.315MRL	0.315	.315	125	50 amperes @125VAC/VDC	0.3918	0.0311
0451.200MRL	0.200	.200	125	50 amperes @125VAC/VDC	0.8372	0.0089
0451.160MRL	0.160	.160	125	50 amperes @125VAC/VDC	1.2157	0.0048
0451.080MRL	0.080	.080	125	50 amperes @125VAC/VDC	4.0500	0.00033
0451.062MRL	0.062	.062	125	50amperes@125VAC/VDC	5.5000	0.00019
0451.100MRL	0.100	.100	125	50amperes@125VAC/VDC	3.1000	0.00138

Littelfuse力特451系列

0451.250MRL
